Durable PVC Small Alu Alu Blister Packing Machine
Durable PVC Small Alu Alu Blister Packing Machine
Durable PVC Small Alu Alu Blister Packing Machine
Durable PVC Small Alu Alu Blister Packing Machine
Durable PVC Small Alu Alu Blister Packing Machine
Durable PVC Small Alu Alu Blister Packing Machine

Durable PVC Small Alu Alu Blister Packing Machine

1.Model: DPP-80

2.Application:Alu/PVC or ALU/Alu Blister packing machine for hard capsule, soft capsule, tablet, candy, etc

3.Packing material: PVC/PET/PS for forming ,Alu foil, composite foil,Dialyzing Paper or other environmental material

4.Machine feature: Small and compact in size, suitable for lab use and small scale production

5.Maximum packing material width: 110mm


Contact us

Description

Description

DPP-80 multi-functional automatic aluminum-plastic blister packaging machine, this machine is innovative design of the company's comprehensive domestic and foreign aluminum-plastic packaging machine. The key parts of the machine adopt many innovative technologies of our company, and the contact with drugs is adopted. Made of stainless steel and high-grade aluminum alloy materials, it is suitable for packaging tablets, sugar-coated tablets and capsules in the pharmaceutical, food and health care industries. It can also package small pieces of food, hardware parts and electronic components. The machine integrates ten functions such as coil unwinding, aluminum-plastic (aluminum-aluminum) feeding, blister forming, filling, scrap recycling, heat sealing, printing batch number, textured indentation, plate punching, and display finished product counting. The packaged articles are well sealed, safe and hygienic.


Features:

01.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.

02.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.

03.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.

04.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.

05.The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.


Applications

Alu/PVC or ALU/Alu Blister packing machine for hard capsule, soft capsule, tablet, candy, etc


Technical Specifications
ModelDDP-80
Cutting TimeAlu-Pvc10-40time/min
AdjustableRange ofStroke20-70mm(Adjustable)
Max. Forming Area80×110mm
Max. Forming Deep20mm
AirPump0.4-0.6Mpa
Voltage380V/220V 50Hz
Main Power1.5Kw
PVC0.15-0.5×80mm
PTP Aluiminum0.02-0.035×80mm
Dialysis Paper50-100g×80mm
Noise<75dBA
Outer Size1600*600*1100mm
Weight450Kg


The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

Work process

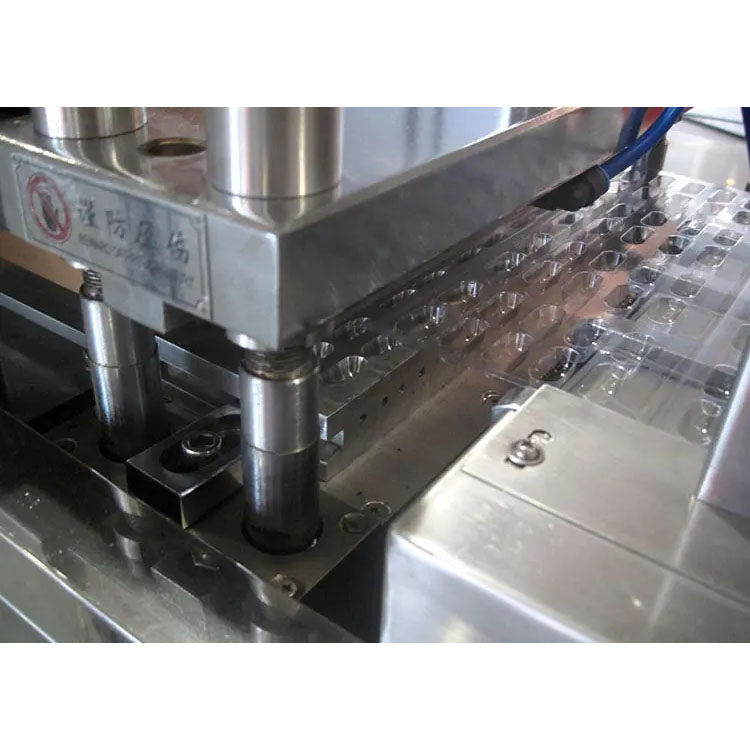

1. Forming ( up and down heating)

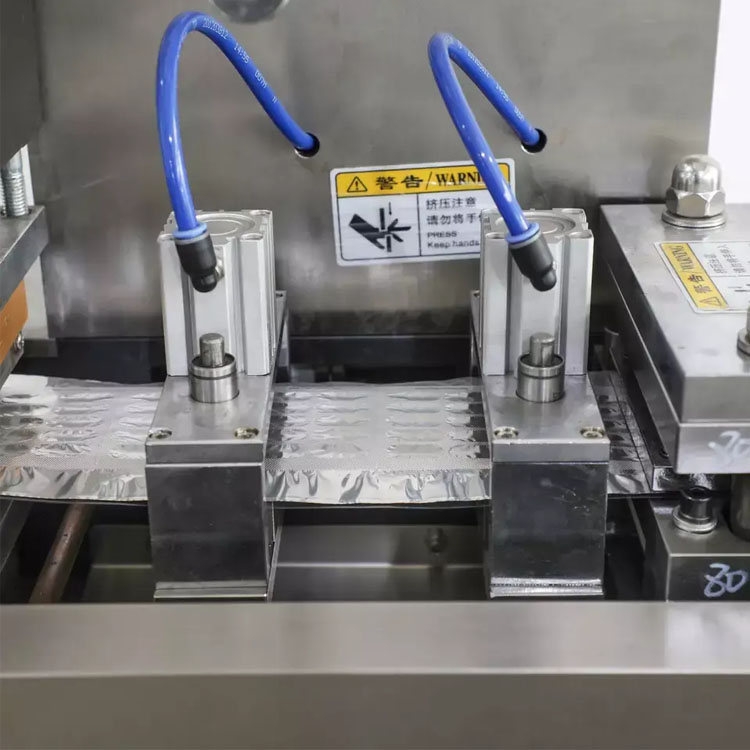

2. Heating Sealing ( up heating)

3. Embossing

4. Impression

5. Cutter

6. Finished product output



Our Sample

undefined

Why Choose Us

1.16 years professional pharmaceutical machinery manufacturer and supplier.

2.3 Years Warranty, 14 Days Delivery, Factory Price.

3.5680 ㎡ factory, Own R&D Team.

4.Free desian service, free professional solutions.

5.Accept the non-standard customized products.

6.Passed Iso 9001. CE. sGs. Intetek certificates.

Company Information

Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.

Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.

Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.

Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.

undefined



Our certificate
Certificates

RFQ

1. What about your Pharmaceutical machine quality?

Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer&rsquo;s good reputation.

2. What about your Pharmaceutical machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. How can you ensure the machine&rsquo;s quality after we put the order?
Before the delivery, we will send you machine&rsquo;s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?

1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.

2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.

3.It is free to train your worker in our factory or in your side or by video.
