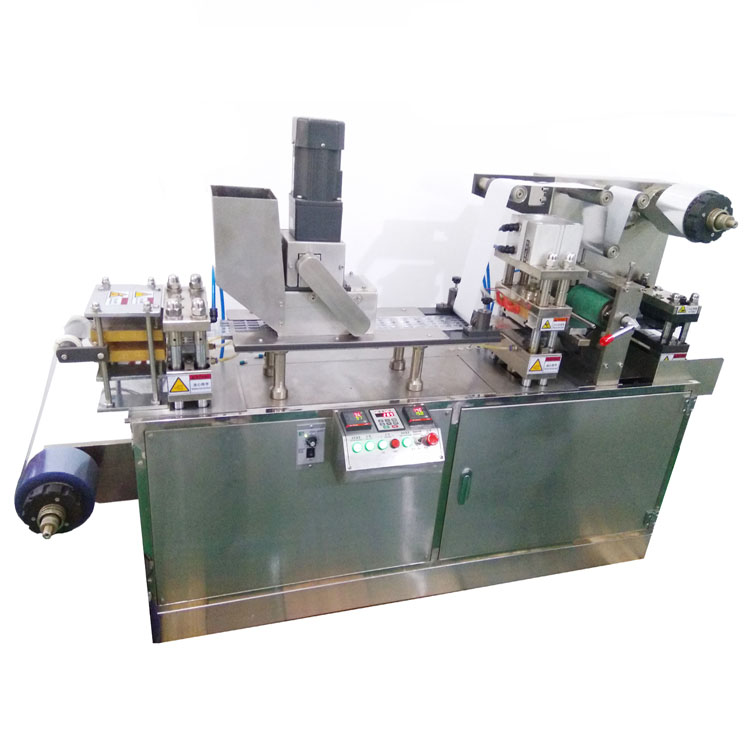

Electronic Cigarettes Pod Cartridge Blister Packing Machine
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | DPB-89 |
| Certification: | / |
| Minimum Order Quantity: | 1 |
| Price: | 5600 usd /set |
| Packaging Details: | Export Wooden Box |
| Delivery Time: | 2-10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 1000 sets per month |
Description
Description
● DPB-89 automatic aluminum-plastic packaging machine series is improved and perfected with reference to foreign advanced technology, which can completely replace imported equipment.
● The implementation of aluminum-plastic composite sealed packaging has the advantages of extending the retention period, beautifying the product, and reducing packaging costs. Because the machine occupies a small area, low investment, multi-functional use, high efficiency, no pollution, low noise, it is an ideal packaging equipment for purifying workshops and hospital reagent rooms.
Applications

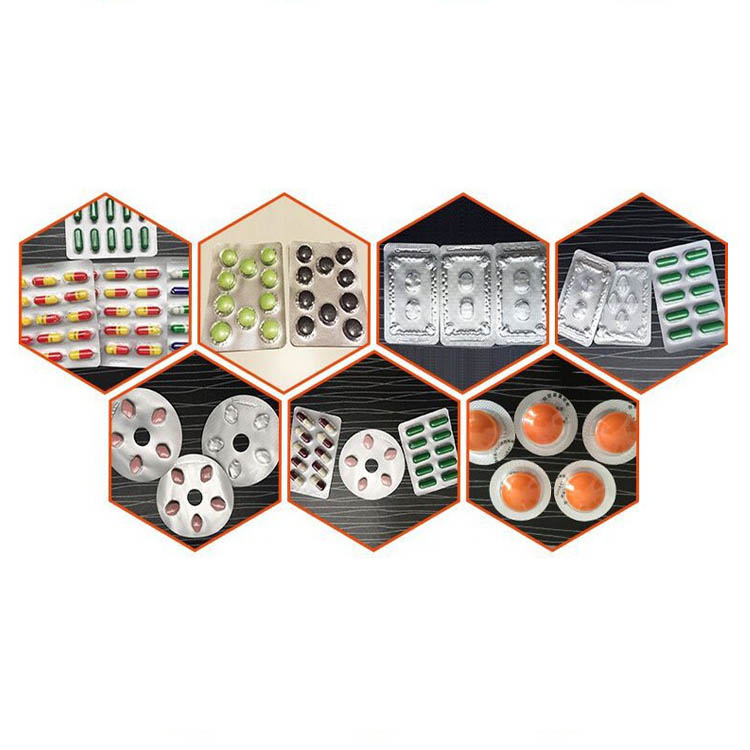

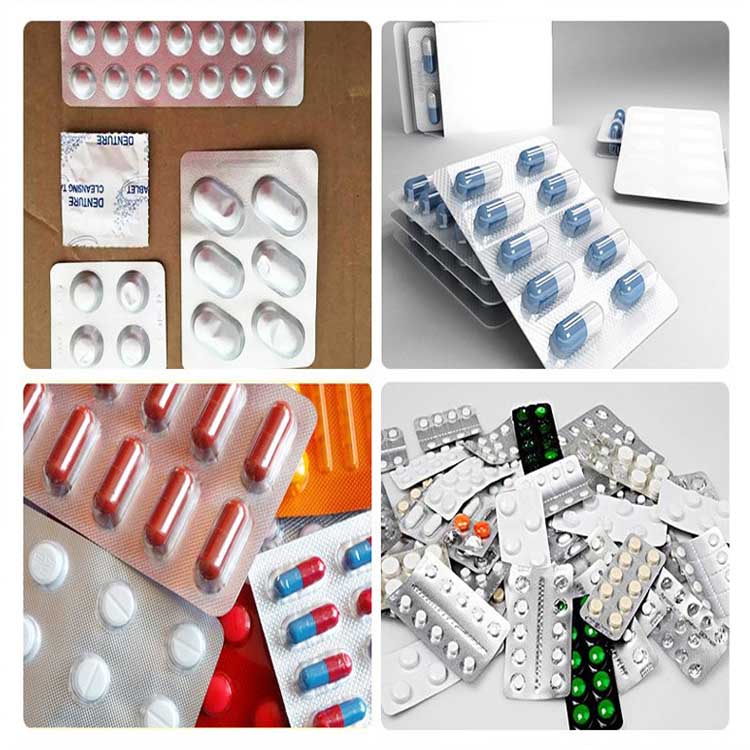

● This machine is suitable for: capsules, plain tablets, sugar coatings, capsules, injections, special shapes, etc., as well as medical devices, light foods, electronic components, and blister sealed packaging.
Competitive Advantage
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
Technical Specifications
Model | DPP-80 | DPP-140 | DPP-250 | |
Cutting frequency(times/min) | 10-40 | 6-50 | 6-50 | |
Max Forming area and depth(mm) | 80x110x26 | 130x130x26 | 240x150x26 | |
Travel range(mm) | 20-80 | 40-140 | 40-160 | |
Capacity of air compressor((m3/min) ) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
Power supply | 380V/220V 3.5Kw | 380V/220V 3.6Kw | 380V/220V 6.2Kw | |
Main motor power(Kw) | 0.55 | 0.75 | 1.5 | |
Packing material(mm) Roll | PVC | (0.25-0.5)*120 | (0.25-0.5)*140 | (0.25-0.5)*250 |
Aluminum foil | (0.02-0.035)*120 | (0.02-0.035)*140 | (0.02-0.035)*250 | |
Dialysis paper | (50-100g)x120 | (50-100g)x140 | (50-100g)x250 | |
Paper card | <400gx120 | <400gx140 | <400gx250 | |
Mould cooling | Tap water,circulating water or water chiller | Tap water,circulating water or water chiller | Tap water,circulating water or water chiller | |
Overall dimensions(mm) | 1600x460x950 | 2300x560x1410 | 3000x730x1600 | |
Weight(Kg) | 450 | 750 | 1600 | |
