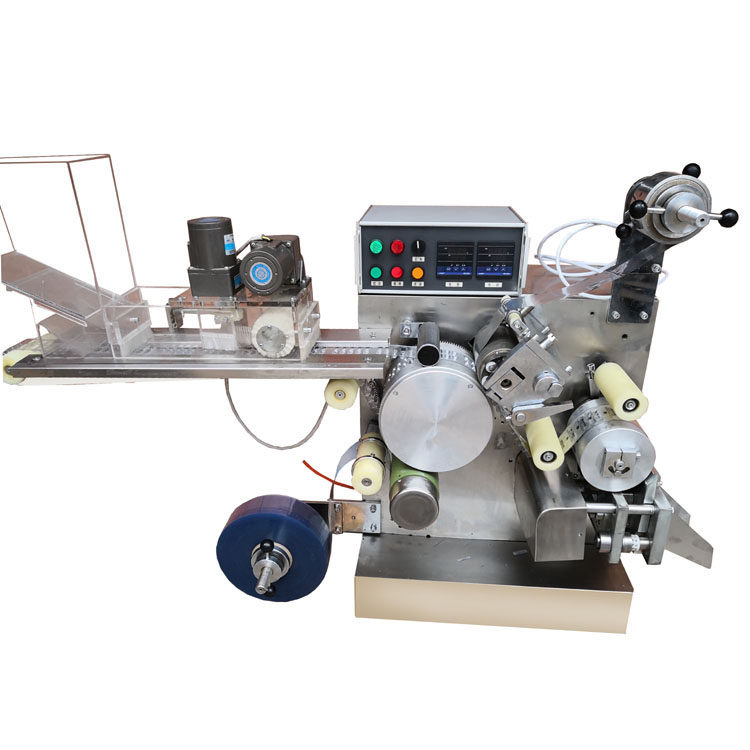

KHPP-9 Automatic aluminum plastic blister packaging machine
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | KHPP-9 |
| Certification: | / |
| Minimum Order Quantity: | 1 |
| Price: | 3800 usd/set |
| Packaging Details: | Export Wooden Box |
| Delivery Time: | 2-10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 1000 sets per month |
Description
Description
● The main transmission part adopts cycloidal pinwheel, which has long life and stable operation.
● Forming, feeding, heat sealing, batch numbering and blanking are completed in one-stop.
● Accurate synchronization, clear reticulation, adjustable version, convenient mold replacement.

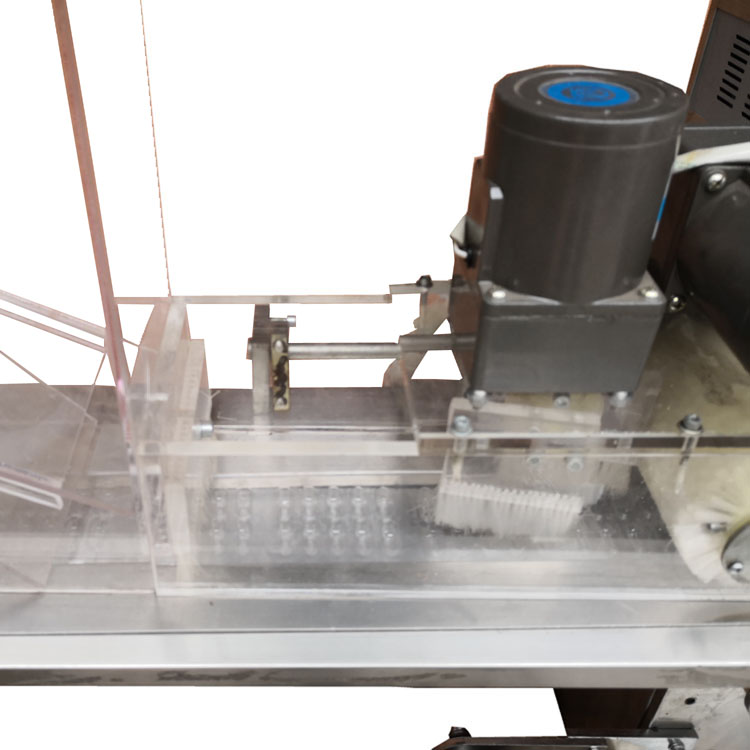

● Equipped with universal feeder, its filling rate can reach over 99%.
● Small size, light weight, low energy consumption and low price.
Applications
● KHPP-9 aluminum plastic blister packaging machine is a composite blister packaging machine with PVC film and PTP aluminum foil as packaging materials. It is suitable for packaging sugar-coated tablets, plain tablets, capsules and other medicines of various specifications and sizes, and can also be used for shapes Similar hardware, electronic components or food packaging have the advantages of reliable sealing, easy to carry and use, beautiful packaging appearance, compact machine structure, high degree of automation, convenient installation and maintenance, etc., and meet the requirements of GMP.
Competitive Advantage
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
Technical Specifications
| Technical parameter | |
| Production capacity | 2-4 million grains/hour |
| Punching cut frequency | 30 times/min, one page each time |
| Standard section | 80×57mm (can be designed according to user requirements) |
| Packing material | pvc hard piece Width: 50-105mm Thickness: 0.2-0.25mm |
| ptp aluminum foil width: 50-105mm thickness: 0.02mm | |
| Total power of power supply | 2.2 kw 380v or 220v 50Hz |
| Overall dimensions | 1300× 500× 900mm |
| Weight | 250kg |
