YH-500 Food grade quantitative filling machine
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | YH-500 |
| Certification: | / |
| Minimum Order Quantity: | 1 |
| Price: | 140usd /set |
| Packaging Details: | Carton box |
| Delivery Time: | 2-10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 500 sets per month |
Description
Description
● There are two ways of automatic filling and foot filling, and the automatic filling waiting time can be adjusted;
● The water nozzle adopts anti-drip design and accurate measurement;

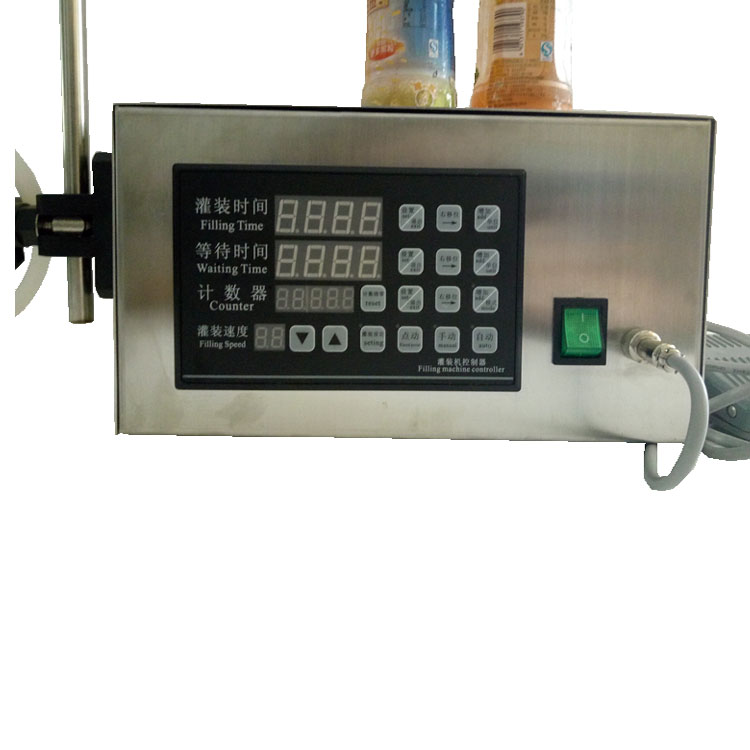

● Unique memory protection device, display the last data when booting;
● Filling speed is adjustable, can count the number of filling bottles, set and stop automatically.
Applications
● YH-500 food-grade liquid filling machine is mainly used in the pharmaceutical, food and chemical industries to meet food and drug safety requirements. It is mainly used for filling wine, vinegar, fruitless beverages, milk, soy milk and other liquids with good fluidity. The maximum loading capacity is about 5L per minute, which is suitable for small batch processing and production.
Competitive Advantage
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
Technical Specifications
| Technical parameters | |
| Filling method | electric self-priming |
| Power supply voltage | AC220 ± 10% 50HZ |
| Filling mouth diameter | 8mm |
| Filling accuracy | ± 0.5% |
| Machine material | 304 stainless steel |
| Motor power | 60w |
| Maximum flow | 5L / min |
| Filling speed | 1-99 |
| Delay range | 1-9999 times |
| Weight | 5kg |
| Dimensions | 280x250x160mm |
