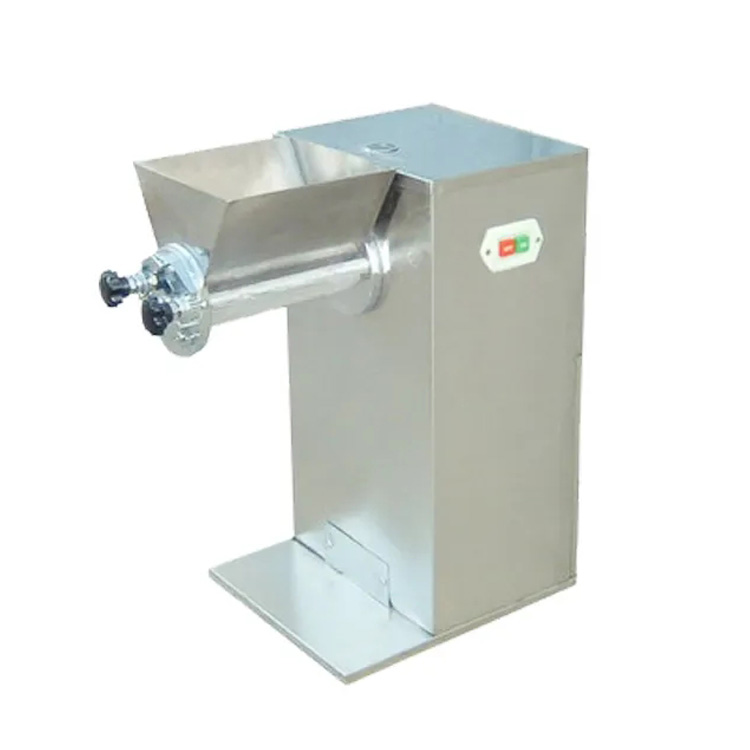

YK-60 Lab Oscillating Granulator
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
YK60 Granulator is widely used in pharmaceutical, chemical and foodstuff trades etc. it can make wet powdery material into granular or crush block dry material, as well as carry out speedy granulation.

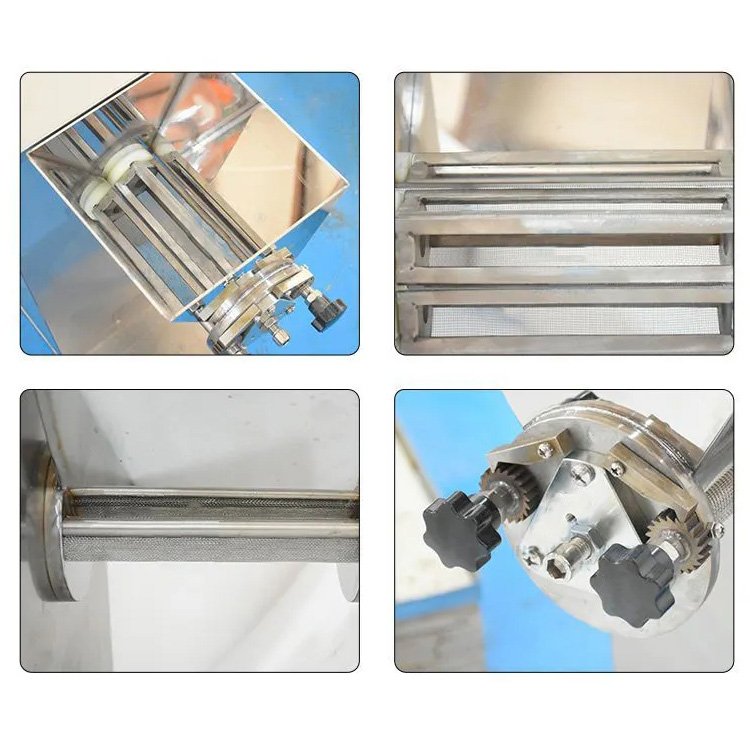

The drum is swung repeatedly by mechanical driving, which makes the material be extruded from sieve, further granulated or crushed or speedily pelletized.

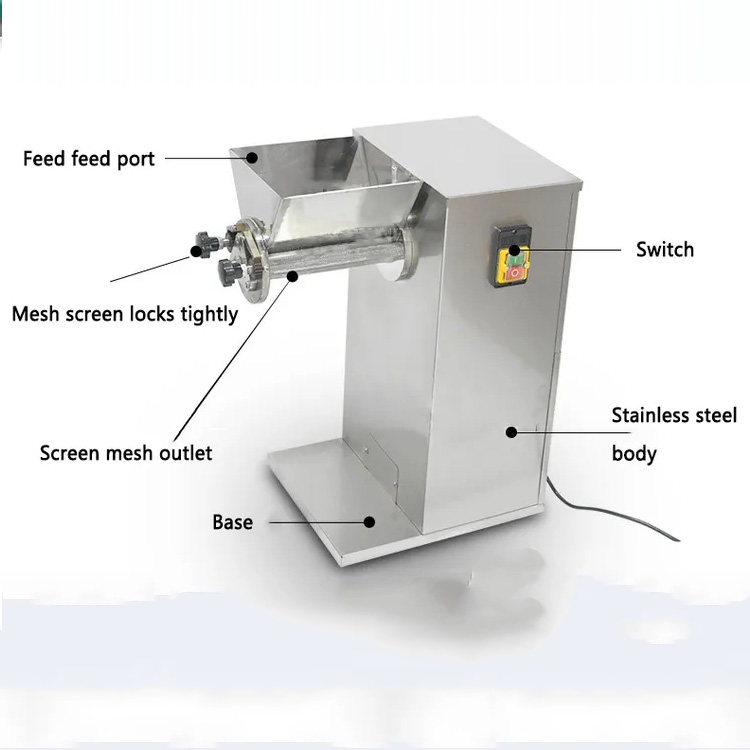

● YK 60 sway lab granulator has 0.55kw motor, with the capacity of 1 to 15 kg/h, it is designed for lab research and test. Oscillation speed is 65 rpm, it can be controlled by Variable-frequency drive. Motor is controlled by push button station, driven by reduction gear box. Open hopper, continuous adding wet or dry material, a cover is available. 4 moveable wheels has bracket assembly ensure the maintenance free.
The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotoThe principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.
|Drum Diameter||Ф60 mm|
|Swing Angle||184 degree|
|Drum Speed||46 r/min|
|Production Capacity||(20-25) Kg/h|
|Packing Size||550×420×550 mm|
|Packing Weight||55 Kg|
