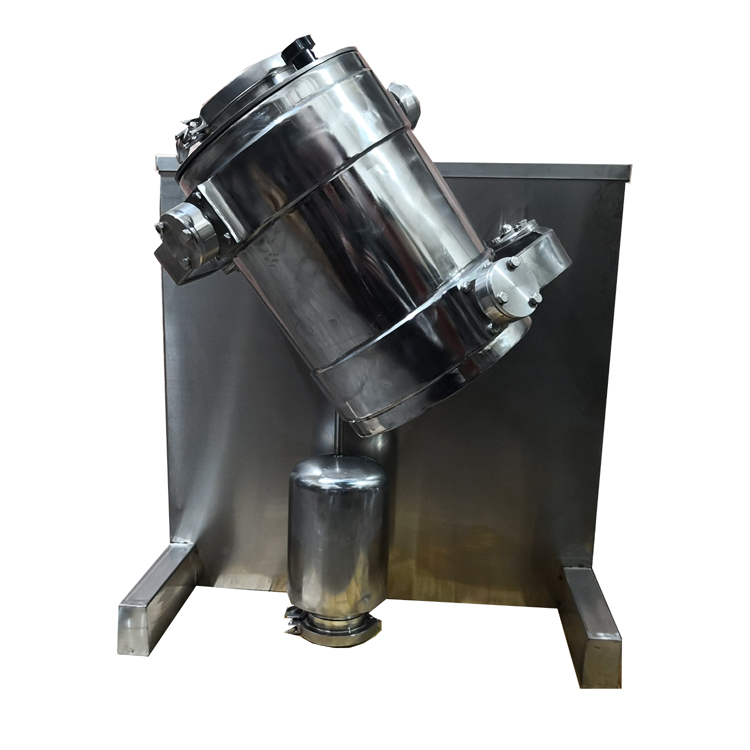

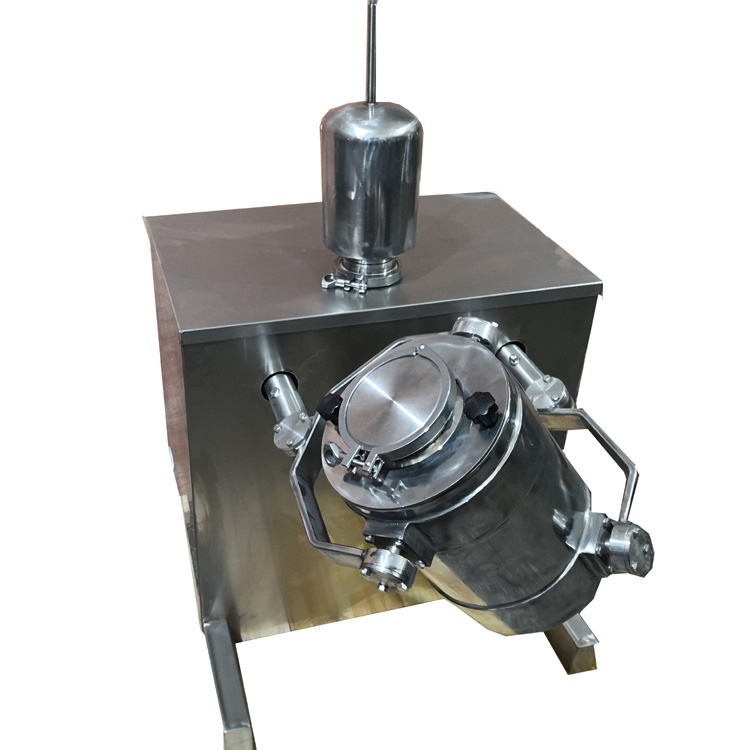

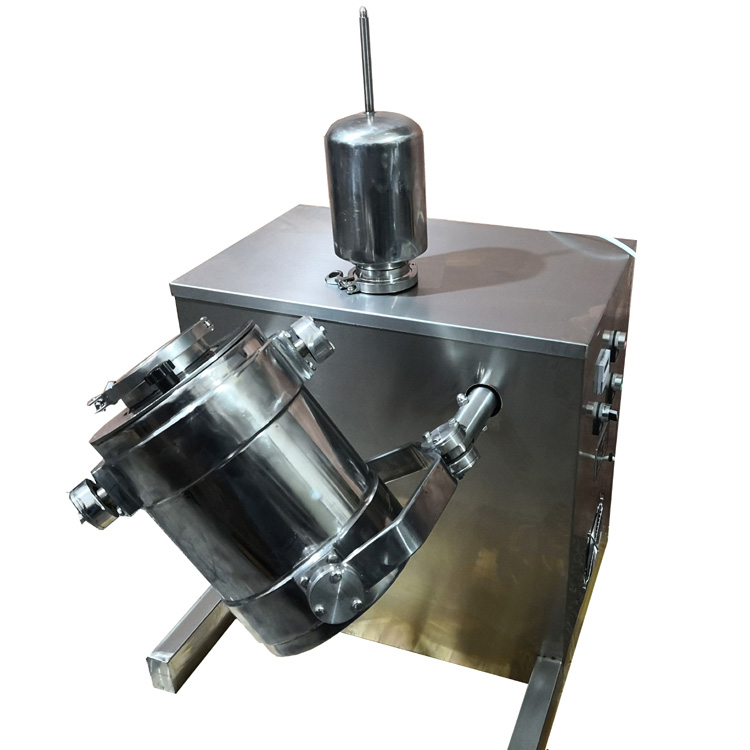

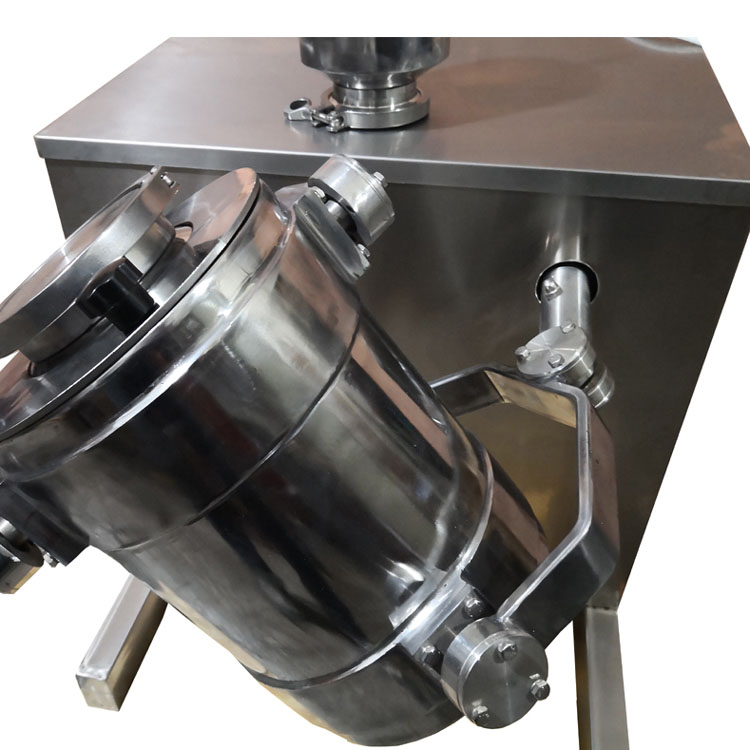

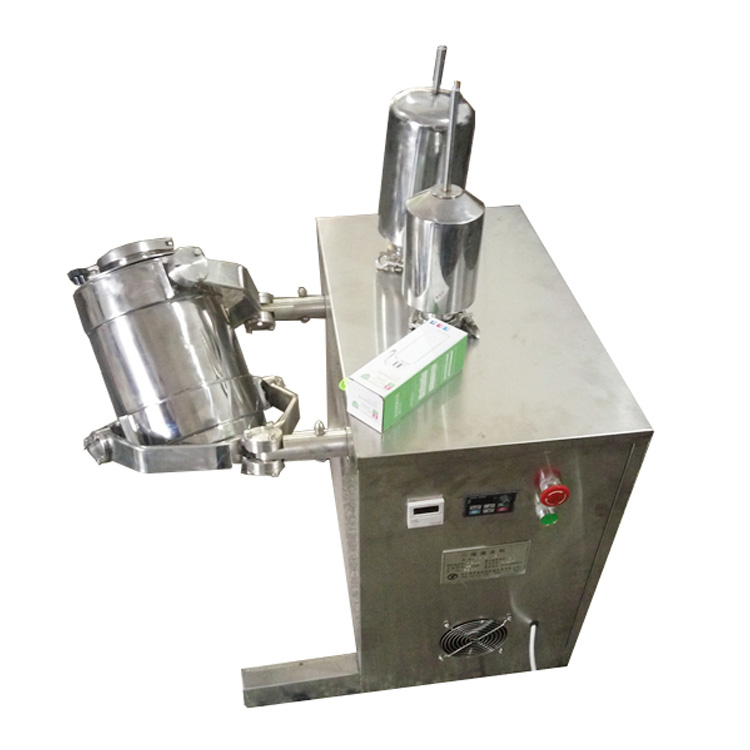

SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine
SHB-5(3) Three dimensional mixing machine

SHB-5(3) Three dimensional mixing machine

Place of Origin:China
Brand Name:YH
Model Number:SHB-5(3)
Minimum Order Quantity:1
Price:To be rediscussed
Packaging Details:Export Wooden   Box
Delivery Time:5-10 working   days, depends on the order quantity
Payment Terms:T/T,Western   Union,Moneygram,Paypal
Supply Ability:1000 sets per   month

Contact us

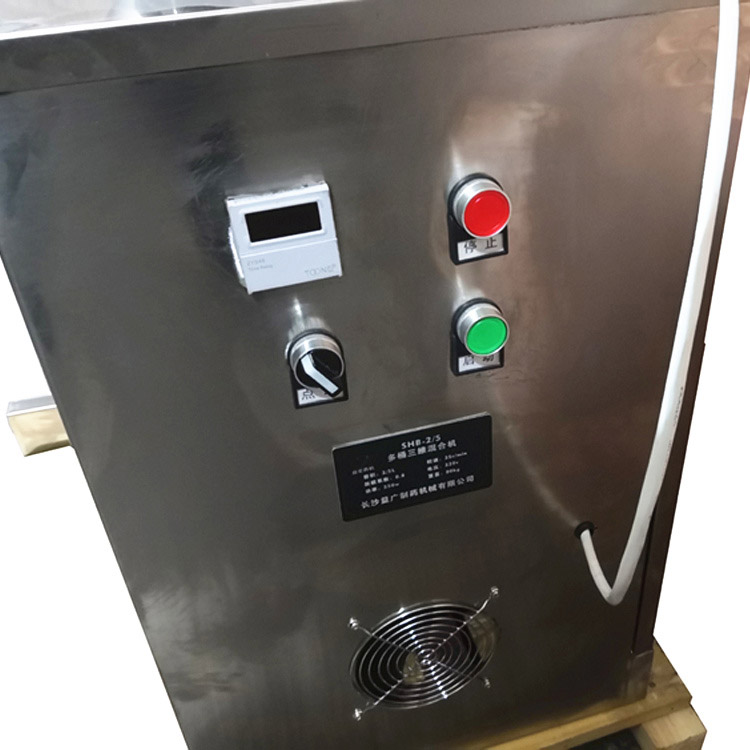

● The three dimensional mixing machine has a maximum loading coefficient of  0.9 in the mixer; the unique design of the mixing barrel of the three-dimensional mixer, the inner wall of the barrel is finely polished, no dead angles, no pollutants, convenient discharge, easy cleaning and easy operation; Can be interchanged in multiple barrels, suitable for loading various materials; using frequency conversion speed regulation function and running time setting function. (these two items are optional)


● The SHB-5 (2) multi-barrel three-dimensional mixing machine is commonly known as a barrel-in-barrel mixer, which uses an external barrel shell and an internal barrel interchange form. Currently there are 2L barrels, 3L barrels, 5L barrels, 5L barrels, 10L barrels and other specifications. Interchangeable with specifications barrels, suitable for multiple mixing of multiple materials in scientific research experiments. The advantage is that special barrels are specifically mixed, that is, one barrel is specifically mixed with a class of materials, which does not need to be cleaned. It is a type of mixing commonly used in the industry.

Competitive Advantage

● No MOQ Limit

● Non-Standard Customized Service

● Exceptional Quality

● Exclusive Designs

● Fast Delivery

● Laboratory One-Stop Supply Service

● Video Outgoing-Inspection

● Professional After-Sales Service

Technical Specifications
Technical Parameter
Tank volume5L / 3L
Maximum tank volume4.5L / 2.7L
Maximum loading weight2.5-4.5kg   (1.5-2.7kg)
Spindle speed24r / min
Motor power0.55kw
Equipment weight85kg

Our Sample

Three-dimensional mixer sample02

Why Choose Us

1.16 years professional pharmaceutical machinery manufacturer and supplier.

2.3 Years Warranty, 14 Days Delivery, Factory Price.

3.5680 ㎡ factory, Own R&D Team.

4.Free design service, free professional solutions.

5.Accept the non-standard customized products.

6.Passed Iso 9001. CE. sGs. Intetek certificates.

Company Information

Changsha Yiguang Pharmaceutical Machinery Co., Ltd. has a history of 15 years experience in manufacturing pharmaceutical machinery and packing machinery. our machines are widely applied in many fields, such as pharmacy, foodstuff, health care product and chemical industry. We have provided services and machines to many different countries and regions in the whole world, such as America, Europe, Oceania, South America, West Asia, Middle East and South-east Asia etc.

Our company registered capital is 10 million RMB. Located in Changsha City,the capital city of Hunan Province, With convenient transportation and excellent port conditions, Can provide complete procurement, customs clearance, installation, debugging training oversea services for customers.

Our main products include the following: 01.high efficiency wet granulator, 02.pellet granulating and coating machine, 03.roller compactor, 04.fluid bed dryer, 05.three dimensional mixer, 06.capsule filling machine ,07.tablet/pill press machine ,08.capsule/ pill / tablet counting machine ,09.blister packing machine,10.cartooning machine,11.ampoule filling and sealing machine etc.

Over the years, our company has been adhering to the concept of customer first, service priority, dedication to serve everyone, improve customer competitive advantage as our responsibility, to provide customers with high quality and competitive prices, welcome customers to call us or visit us.

Three-dimensional mixer02

Our certificate


1. What about your Pharmaceutical machine quality?

Our factory has more than 10 years experience in mechanical processing,exported into many countries and areas; already got customer’s good reputation.

2. What about your Pharmaceutical machine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for machine?

1.Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.

2.We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.

3.It is free to train your worker in our factory or in your side or by video.
