DZM-15 Automatic Chinese medicine pill making machine
|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Export Wooden Box|
|Delivery Time:||5-10 working days, depends on the order quantity|
|Payment Terms:||T/T,Western Union,Moneygram,Paypal|
|Supply Ability:||1000 sets per month|

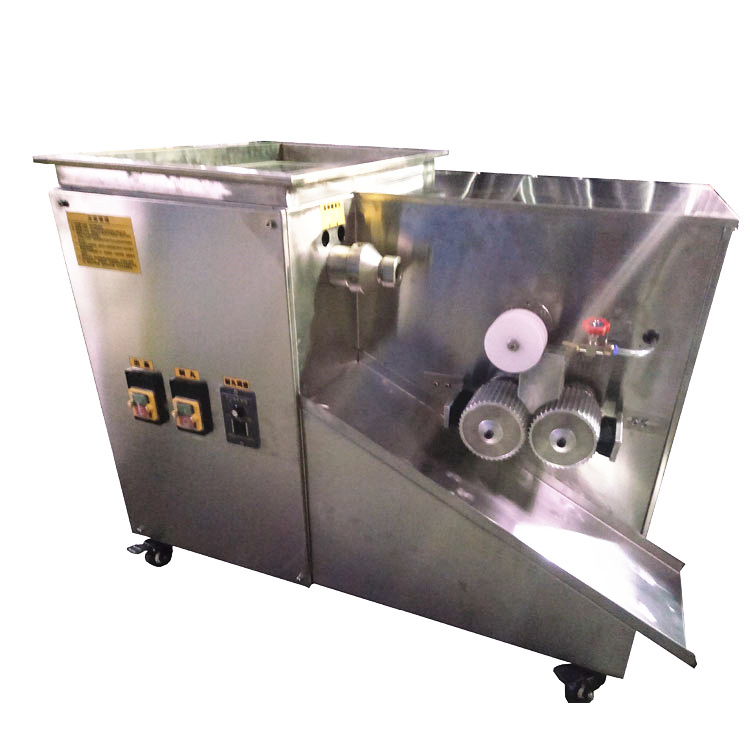

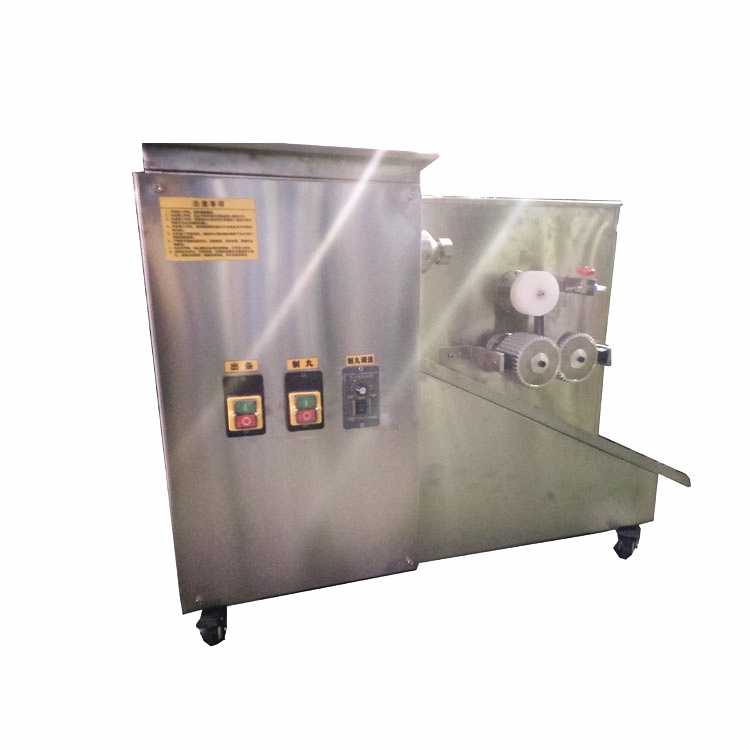

● This machine is composed of two parts: Draw-out and Pill-making.It has a box structure with horizontal Draw-out, simple structure, easy operation and convenient maintenance.
● The worm gear reducer is adopted for delivery, and the transmission is stable and reliable.
● The pill-making and pill-cutting mechanism of the pill-making part is in a gearbox, and the parts are well lubricated. The pill-cutting speed can be adjusted by the knob of the stepless speed changer, so that the hob can obtain a speed of 6-30 rpm Until the cutting speed matches the delivery speed.
● The feeding opening is large, and the pressure plate is turned to press the material, which is convenient for filling and can eliminate the phenomenon of shed material. The hopper is divided into two upper and lower sides by the axis of the flap, which is convenient to disassemble when cleaning.

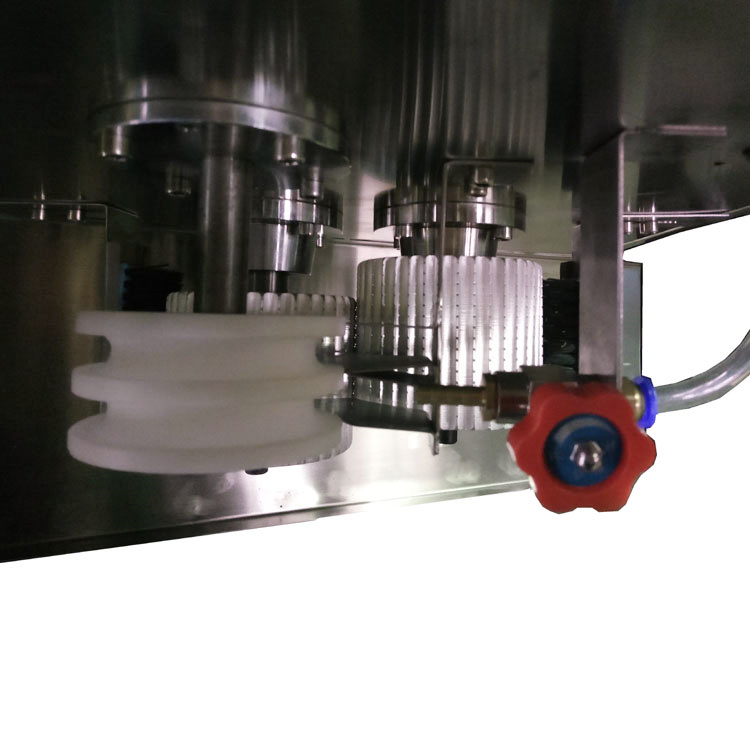

● Use alcohol to drip the medicine strip, and a brush is installed on the outside of the pill knife to prevent the sticking of the knife. The alcohol is packed in the square box of the delivery mechanism.
● It is used in small pharmaceutical factories, large and medium-sized pharmaceutical factory trial production rooms, traditional Chinese medicine research institutes, traditional Chinese medicine research units, hospitals, private clinics, traditional Chinese medicine stores (rooms), on-site processing of counters on the sales website of tonics, and development of pellet food in food factories. It is a pill-making equipment dedicated to the pharmaceutical industry. It has the advantages of round pills, accurate dosage, fast disintegration, smooth delivery, no shed material, smooth transmission, easy operation, and extremely low failure rate. In addition, the contact area between the machine and the drug and the whole machine are made of stainless steel. The cabinet is bright, easy to clean, and meets GMP standards. (Note: We can customize the tool specifications according to the customer's needs to make the pill most satisfied by the customer.
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
|Production capacity||Based on 6mm 10-15kg / h (one at a time)|
|Based on 6mm 10-30kg / h (two sticks at a time)|
|Scope of application||4mm to 10mm pills, can choose any size|
|Dimension||900 × 600× 700mm|
|Voltage||220V / 380V|
