DZM-15S Automatic pill making machine
| Place of Origin: | China |
| Brand Name: | YH |
| Model Number: | DZM-15S |
| Certification: | / |
| Minimum Order Quantity: | 1 |
| Price: | 3100usd/set |
| Packaging Details: | Export Wooden Box |
| Delivery Time: | 5-10 working days, depends on the order quantity |
| Payment Terms: | T/T,Western Union,Moneygram,Paypal |
| Supply Ability: | 1000 sets per month |
Description
Description
● The parts in contact with the drug and the appearance surface are made of stainless steel, the work surface has no dead corners, good sealing, easy disassembly and cleaning, and meets GMP requirements.
● The discharge port is in zero contact with the rubbing mouth. Once the medicine is discharged, the pills are made directly without rubbing the bar, eliminating manual intervention, and avoiding manual actions such as breaking the bar and connecting the bar.

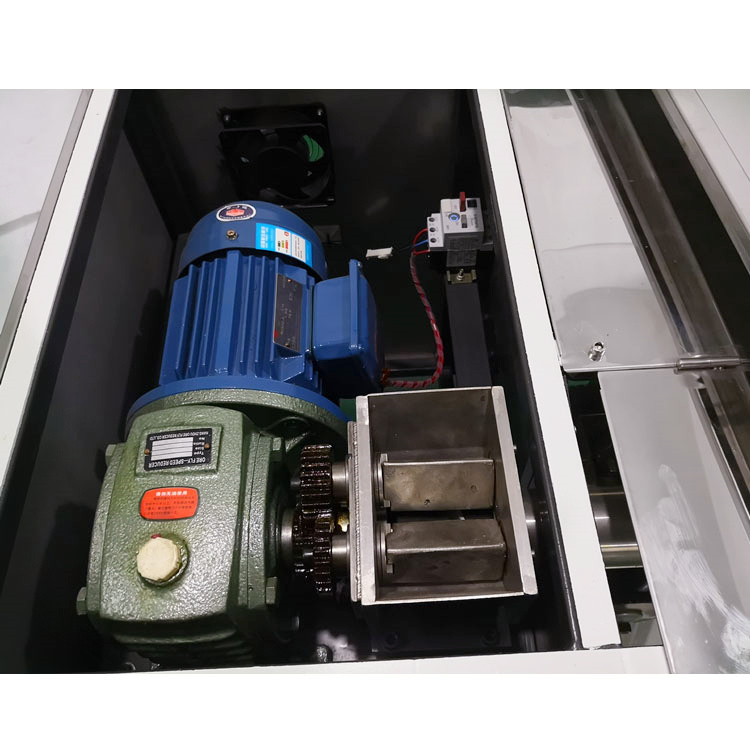

● Turbine reducer is used for medicine delivery, and the transmission is stable and reliable.
● Drugs are available for selection. One or two drugs can be dispensed at one time, which can double the efficiency.
● The discharge port is made of stainless steel, which is durable.
Applications
● It is mainly used in the research and development of pharmaceutical laboratories, pharmaceutical factories, health food factories and hospital preparation rooms, clinics, pharmacies, etc. The advantages are high efficiency, saving labor costs, and it is the machine of choice for new pharmaceutical factories.It does not need to rub the sticks, it can make pills directly, eliminating the need for manual actions such as broken sticks and sticks. The pills are round, uniform in size, no defects, and no screening is required. It has the advantages of small volume, low noise, pill-shaped circle, smooth delivery, smooth transmission, easy operation and extremely low failure rate. And the machine's contact with the drug and the whole machine are sealed with stainless steel and aluminum alloy. Made of 304 stainless steel, the case is bright. The main thing is that the blanking plate can be removed, and there is no dead corner for cleaning. It conforms to the GMP standard. Can produce honey pills, paste pills, water pills, concentrated pills, honey pills, food, chemical and other pills.
Competitive Advantage
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
Technical Specifications
| Technical Parameter | |
| Pill making specification | Φ4mm ~ Φ10mm finished pills (can be customized to the size of the mold, but also non-standard mold size) |
| Production capacity | 15-20kg / h based on 6mm (2 sticks) |
| Overall dimension | 900 × 700 × 600mm |
| Delivery motor | 750W |
| Pill making motor | 550W |
| Voltage | 380V / 220V optional |
| Weight | 160kg |
