DZM-5 Mini traditional Chinese medicine pill making Machine
|Place of Origin:
|Minimum Order Quantity:
|Export Wooden Box
|5-10 working days, depends on the order quantity
|1000 sets per month

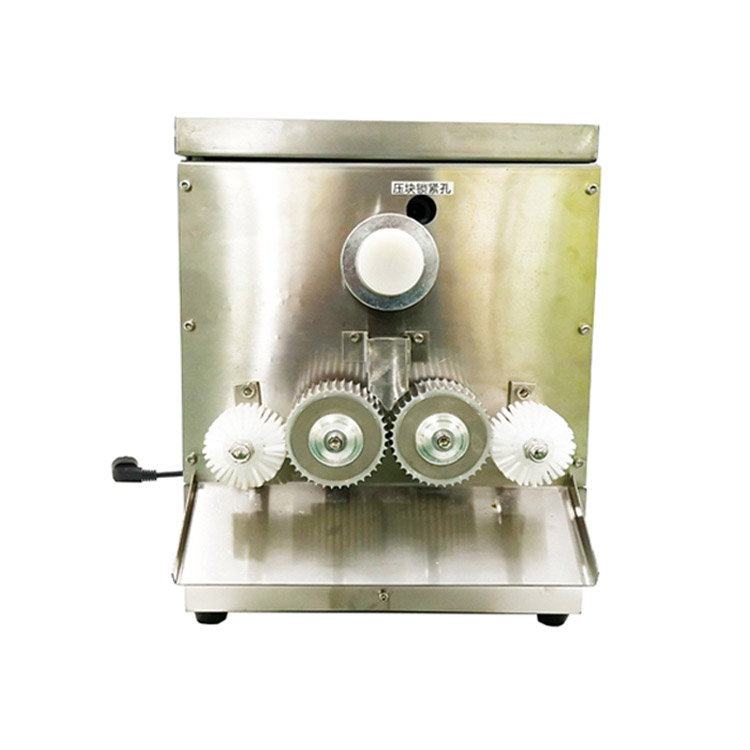

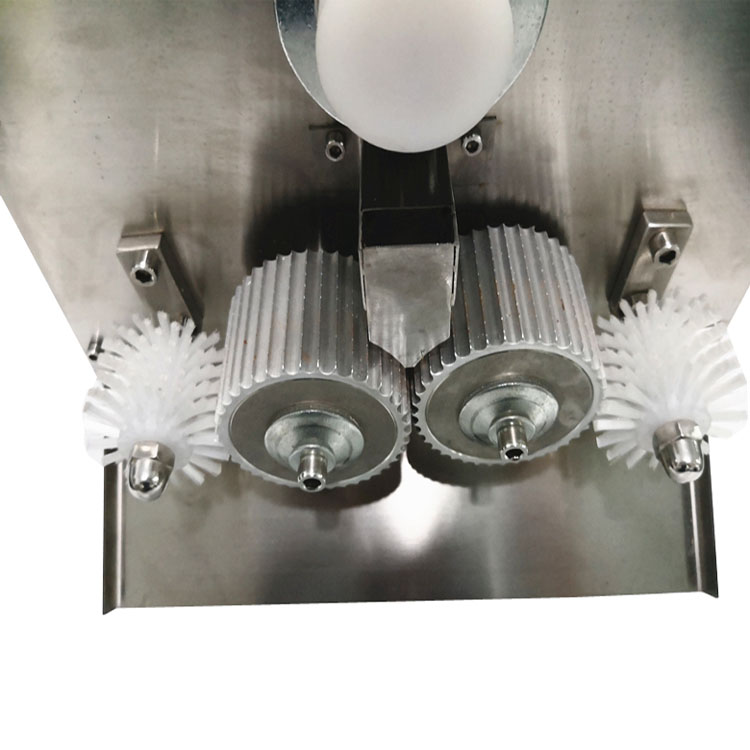

● Put the prepared medicine into the feeding port, and the machine automatically presses the medicine stick to the rubbing knives, and the pills are directly discharged through the rubbing knives. There is no need to manually pick up the strip in the middle, and no robotic hand is needed to scrape the strip. Adopting the principle of bionics, the rubbing knife touches the principle of manual rubbing. The knife acts on the pills before, after, and around. The pills are smooth and round, and the size is uniform. No waste pills are generated during the rubbing process. Frequency conversion speed regulation: The rubbing ball is equipped with a frequency conversion speed control switch. The dryness and humidity of the medicinal material affects the speed of the feeding. Through the frequency conversion speed regulation of the rubbing ball, the feeding speed and the rubbing speed can be adjusted to be consistent.
● The DZM-5 full-automatic Chinese medicine pill making machine is a new type of pill machine launched by our company, which is a pill making device dedicated to the pharmaceutical industry. Combining the advantages of various automatic pill making machines in one machine, it has the advantages of round pills, accurate dosage, fast disintegration, smooth delivery, no shed material, stable transmission, easy operation, and extremely low failure rate. In addition, the contact area between the machine and the drug and the whole machine are made of stainless steel. The cabinet is bright, easy to clean, and meets GMP standards.
● The main body of the machine and the parts in contact with the medicine are all medical grade 304 stainless steel, which is safe and hygienic; the parts in contact with the medicine can be disassembled and cleaned, no dead corners can be cleaned up, and the drug will not be caused by different prescriptions.
● The machine comes with a 5mm mold as standard. You can choose 3mm,4mm,5mm,6mm,7mm,8mm, and mold according to your own experimental conditions.
● No MOQ Limit
● Non-Standard Customized Service
● Exceptional Quality
● Exclusive Designs
● Fast Delivery
● Laboratory One-Stop Supply Service
● Video Outgoing-Inspection
● Professional After-Sales Service
|Matching pill shaft
|5mm rubbing knife
|Optional pill shaft
|precision gear motor
|600 × 340 × 430mm
